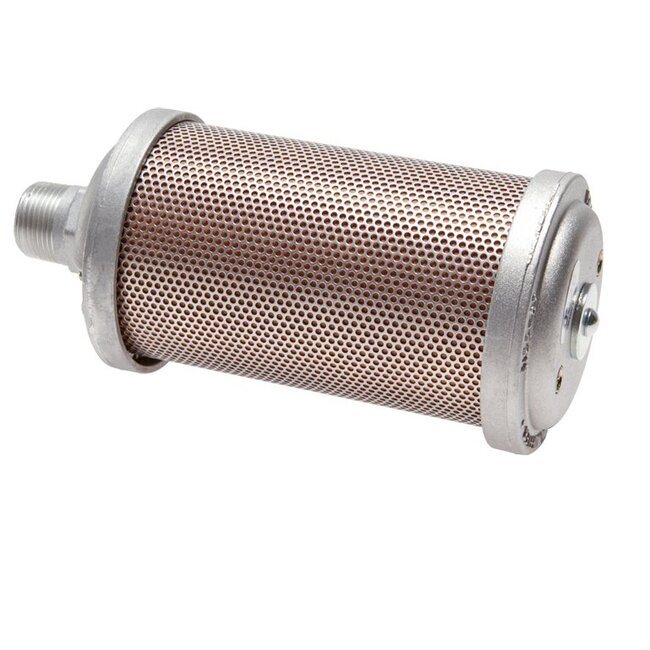

High Performance geluidsdemper
Werkdruk: PN 40 bar
Lees meer.
SPECIFICATIES:
Werkdruk: 40 bar.
| Aansluitmaat | Flow* | Diameter | Lengte |
| G1/2" | 13,0 m³/min. | Ø 80 mm | 153 mm |
| G3/4" | 16,0 m³/min. | Ø 87 mm | 183 mm |
| G1" | 23,0 m³/min. | Ø 100 mm | 223 mm |
| G1.1/4" | 31,0 m³/min. | Ø 100 mm | 223 mm |
| G1.1/2" | 53,0 m³/min. | Ø 134 mm | 345 mm |
| G2" | 56,0 m³/min. | Ø 134 mm | 480 mm |
| R3" | 200,0 m³/min. | Ø 210 mm | 582 mm |
| R4" | 395,0 m³/min. | Ø 238 mm | 598 mm |
| R6" | 1.000 m³/min. | Ø 334 mm | 786 mm |
* bij 6 bar
