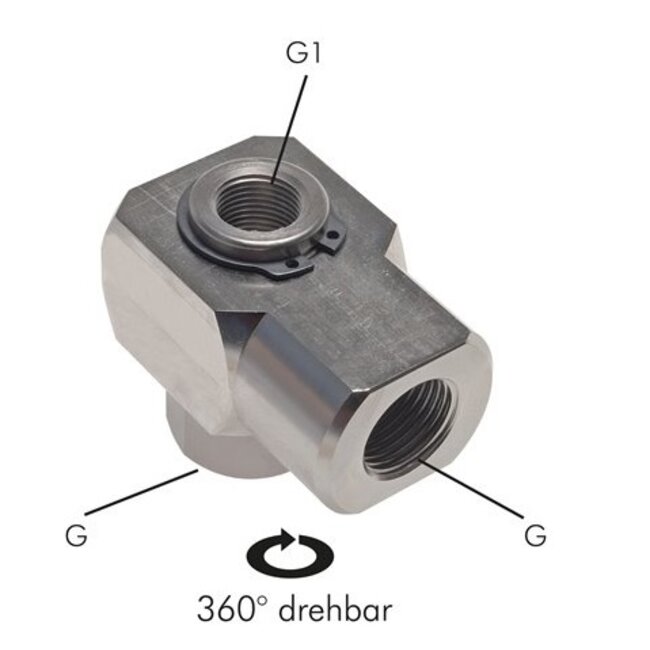

HAAKSE DRAAIKOPPELING TOT 550 MIN-1 Lees meer.
geoliede perslucht

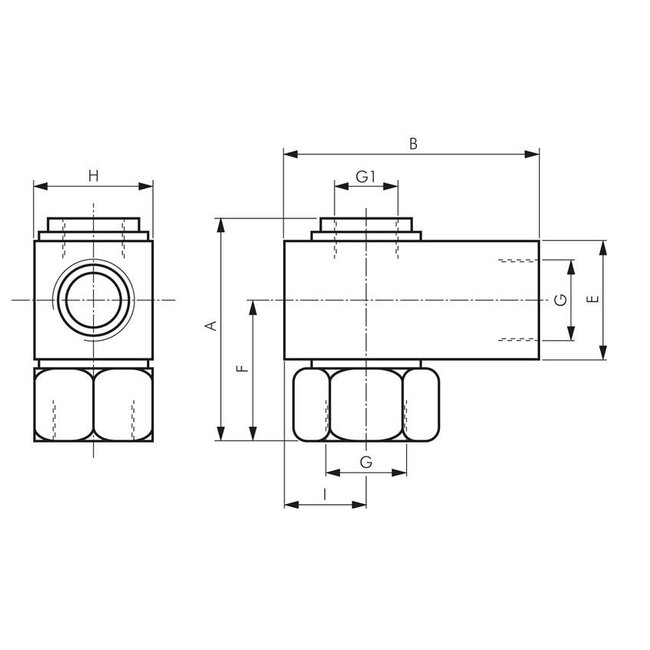

| G (2x) | G1 | DN | A | B | E | F | H | I | Max. omw-1 |
| G1/8" | -- | 5 | 32 mm | 30 mm | 16 mm | 22 mm | 16 mm | 8 mm | 550 |
| G1/4" | -- | 5 | 32 mm | 30 mm | 16 mm | 22 mm | 16 mm | 8 mm | 550 |
| G3/8" | G1/8" | 8 | 39 mm | 40 mm | 20 mm | 26 mm | 25 mm | 12,5 mm | 300 |
| G1/2" | G3/8" | 11 | 55 mm | 65 mm | 30 mm | 35 mm | 40 mm | 20 mm | 200 |
| G3/4" | G1/2" | 15 | 70 mm | 65 mm | 40 mm | 45 mm | 40 mm | 20 mm | 160 |
| G1" | G3/4" | 18 | 80 mm | 80 mm | 45 mm | 52,5 mm | 50 mm | 25 mm | 140 |
