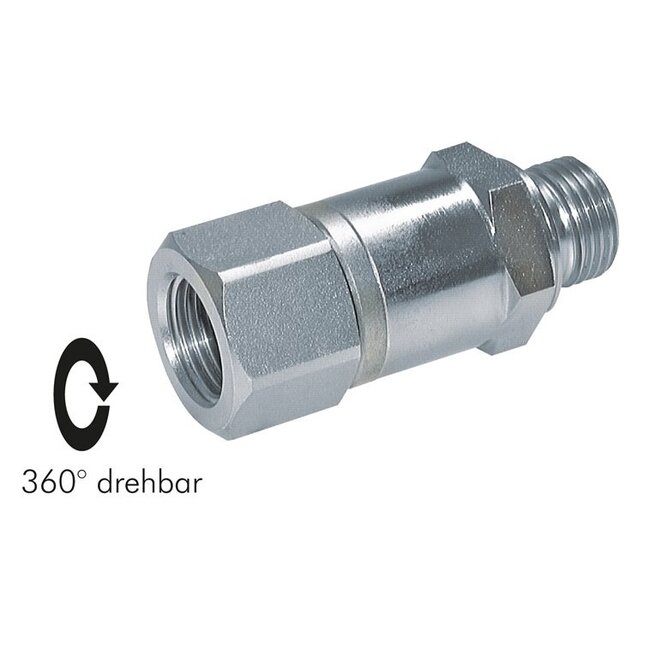

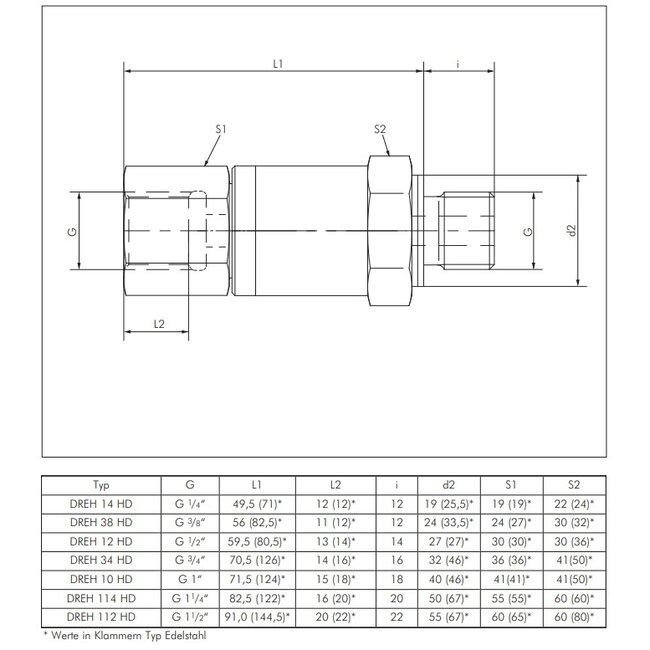

DRAAIBARE DOORVOER SV tot 500 bar Lees meer.
| Buitendraad | Binnendraad | Max. omw-1 | DN | PN VS |
| G1/4" | G1/4" | 5,0 | 6 | 500 bar |
| G3/8" | G3/8" | 5,0 | 8 | 400 bar |
| G1/2" | G1/2" | 5,0 | 10 | 400 bar |
| G3/4" | G3/4" | 2,0 | 16 | 400 bar |
| G1" | G1" | 2,0 | 16 | 400 bar |
| G1.1/4" | G1.1/4" | 1,0 | 25 | 400 bar |
| G1.1/2" | G1.1/2" | 1,0 | 27 | 315 bar |
